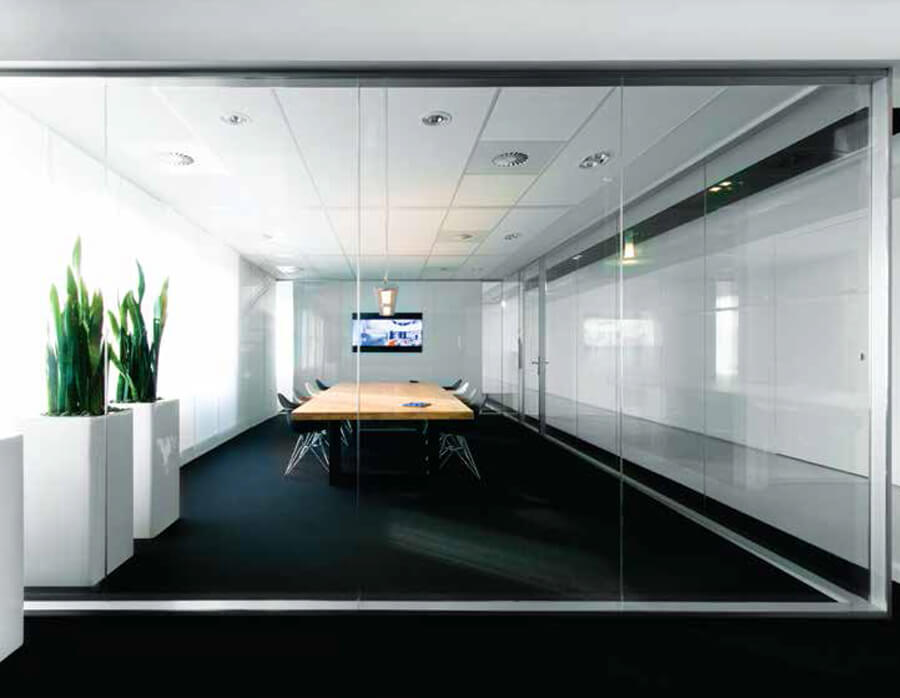

Light Wall is a system of interior demountable partition walls in which the panels, in glass and wood, are self-bearing. LW1 and LWA versions are single-glazed, central and asymmetric, LW2 version is double-glazed, LWC is composed of two solid panels. The partitions, 75 mm thick, are made of extruded aluminium profiles designed to house safety glass panels, special glazed panels with wood or fabric, solid panels in melamine, veneer coated or lacquered.
Top and bottom tracks allow the perfect leveling of the partition wall and can house 10/11 mm or 12/13 mm laminated glasses. The fixing of the glasses is guaranteed by plastic gaskets, connections between elements, linear or with variable angle, are provided by profiles in aluminium, transparent polycarbonate or in crystal clear double-sided tape. Doors are available in hinged or inner sliding type, with single or double leaf, in glass or solid, and can be provided in full-height version too.
Light Wall is a system of interior demountable partition walls in which the panels, in glass and wood, are self-bearing. LW1 and LWA versions are single-glazed, central and asymmetric, LW2 version is double-glazed, LWC is composed of two solid panels. The partitions, 75 mm thick, are made of extruded aluminium profiles designed to house safety glass panels, special glazed panels with wood or fabric, solid panels in melamine, veneer coated or lacquered.
Top and bottom tracks allow the perfect leveling of the partition wall and can house 10/11 mm or 12/13 mm laminated glasses. The fixing of the glasses is guaranteed by plastic gaskets, connections between elements, linear or with variable angle, are provided by profiles in aluminium, transparent polycarbonate or in crystal clear double-sided tape. Doors are available in hinged or inner sliding type, with single or double leaf, in glass or solid, and can be provided in full-height version too.
Solid Wall is a traditional partition wall unit, 100 mm thick, to be fitted with accessories and proposed in 3 versions: wooden solid, single glass and double glass. It is composed of an inner supporting structure in zinc-coated vertical and horizontal profiles and it is fitted with infill modules, 50/100/150/200 cm wide, that are fixed by a snap system by harmonic steel springs that are pre-inserted in free positions into the perimetric cutting of the panels.
The posts are equipped with adjustable feet both floor and ceiling. Connection points between the structure and the infill panels are covered by a gap seal. Floor and ceiling profiles, corners, starting, ending and glass-stopper profiles are made of extruded aluminium and are equipped with plastic seal gaskets. Doors are available in the hinged version with solid or glass leaf or in the external sliding version, with single or double leaf, and they can be provided both in standard and full-height.
A revolutionary structural external-flush glass partition wall in 85 mm thickness. A snap-fit fastening, between glass and aluminum profile, without the use of glues result of years of research. An innovation that overcomes the limitations of traditional technical adhesive materials allowing a reliable fixing stable over time and independent of the environmental operating conditions. A compensator/leveler designed to absorb structural adjustments or attenuate the seismic stress.
The posts are equipped with adjustable feet both floor and ceiling. Connection points between the structure and the infill panels are covered by a gap seal. Floor and ceiling profiles, corners, starting, ending and glass-stopper profiles are made of extruded aluminium and are equipped with plastic seal gaskets. Doors are available in the hinged version with solid or glass leaf or in the external sliding version, with single or double leaf, and they can be provided both in standard and full-height.

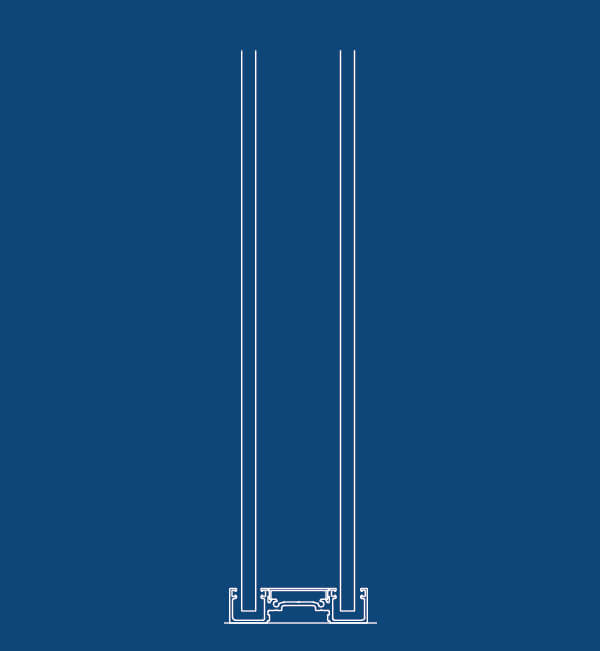

The Double Glass 100 Ótic Partición is the alignment of two glass panels to make up a single module. It guarantees excellent acoustic benefits. The double-pane glass doors appear flush with the walls and come in a variety of finishes. There is also the possibility of inserting curtains, blinds, etc. between the two glass panels.
Our Broad Line 100 Ótic Vetro accentuates the glass component & minimizes use of the aluminium frames to a modern look. This seamless design philosophy lends flexibility and individuality to your spaces.

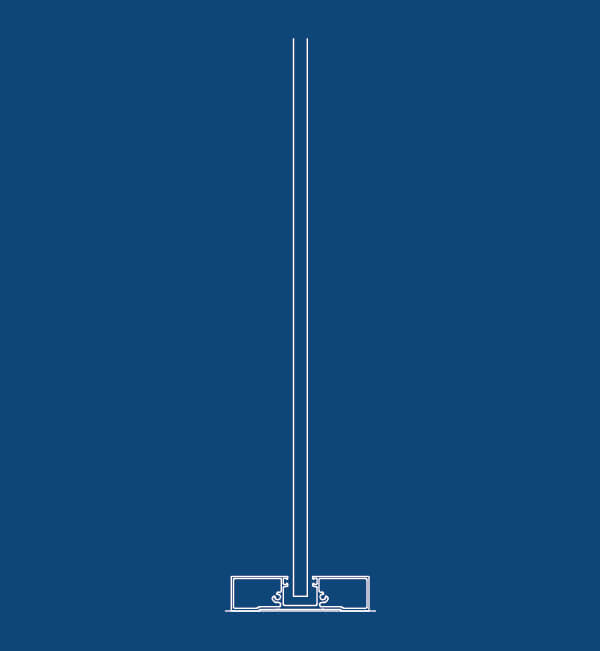

Our Slim Line 40 Single-Glazed Partition offers unbeatable transparency and minimal hindrance. It is slim yet possesses the uncompromising ability to withstand a height of up to 3 metres. What’s more, this system also delivers peerless sound insulation. Most once spaces need screens that offer acoustic benefits and structural stability – especially cabins and conference rooms. Ótic Vetro Aluminium Glass is the ideal solution for these requirements.
Segmented partitions are seen in onces all over the world, big and small. It would be surprising to find a modern o ce that doesn’t have at least one partition somewhere these days. They are useful, versatile and gives conventional look for partition system.
The segmented partition can be used with the glass or the laminated panels as per the requirement of customer. We provide 2 ranges one is system segmented partition & another is stick-on system.
The same is available in slim line –Wide Line as well as Double glass system of Ótic Partición.The results are the same in acoustic performance as standard glass partition system.

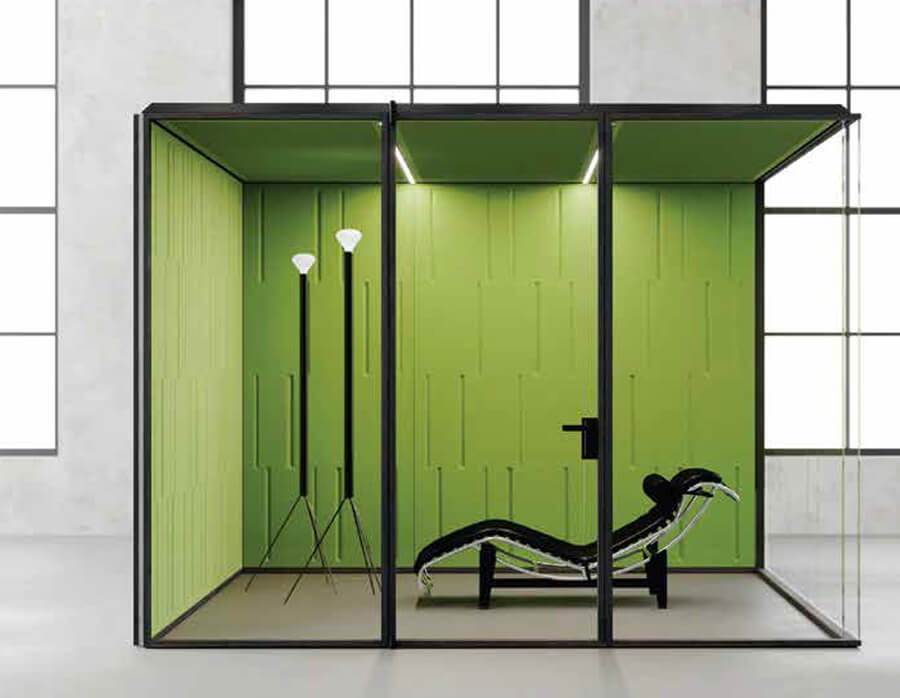

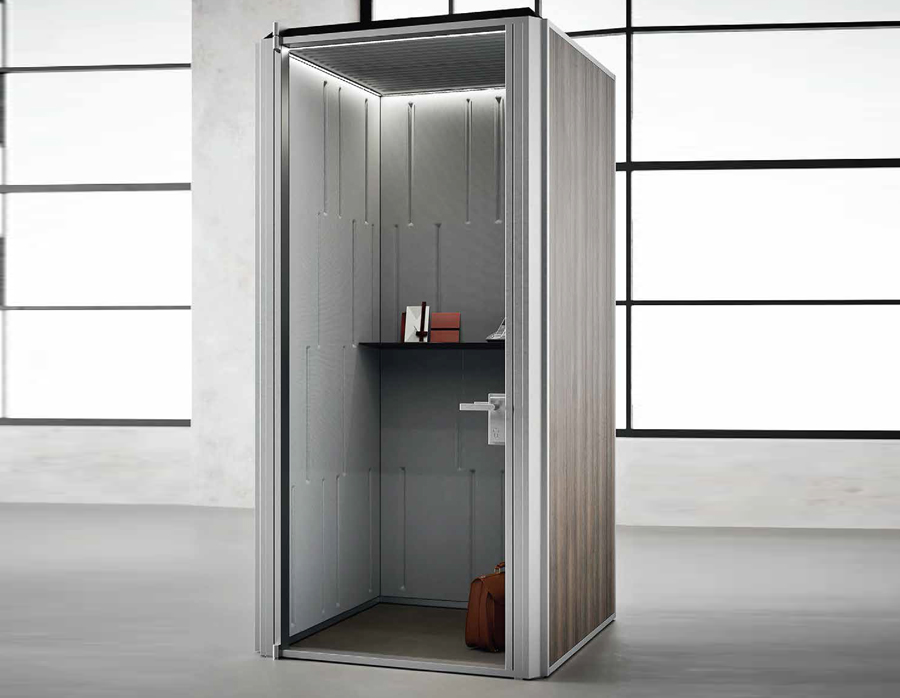

InBox is a defined system, suitable for preserving acoustic privacy. It provides a wide range of material and dimension combinations, acknowledging it as the best choice to create meeting rooms, Office, internet or Calpoints or… just quiet relax areas. The self-standing frame enables a quick and undemanding placement of the InBox modules, while the many materials, colors and finishings merge it into any location.
Regardless dimensions, InBox modules always feature the best comfort and plus you may need, even caring for circumstances which may seem uncommon. Wiring, switches and other utilities do not need any extra service module, as they are here embedded within the solid panels: space is always optimized without compromising design and functionality.
