Screens

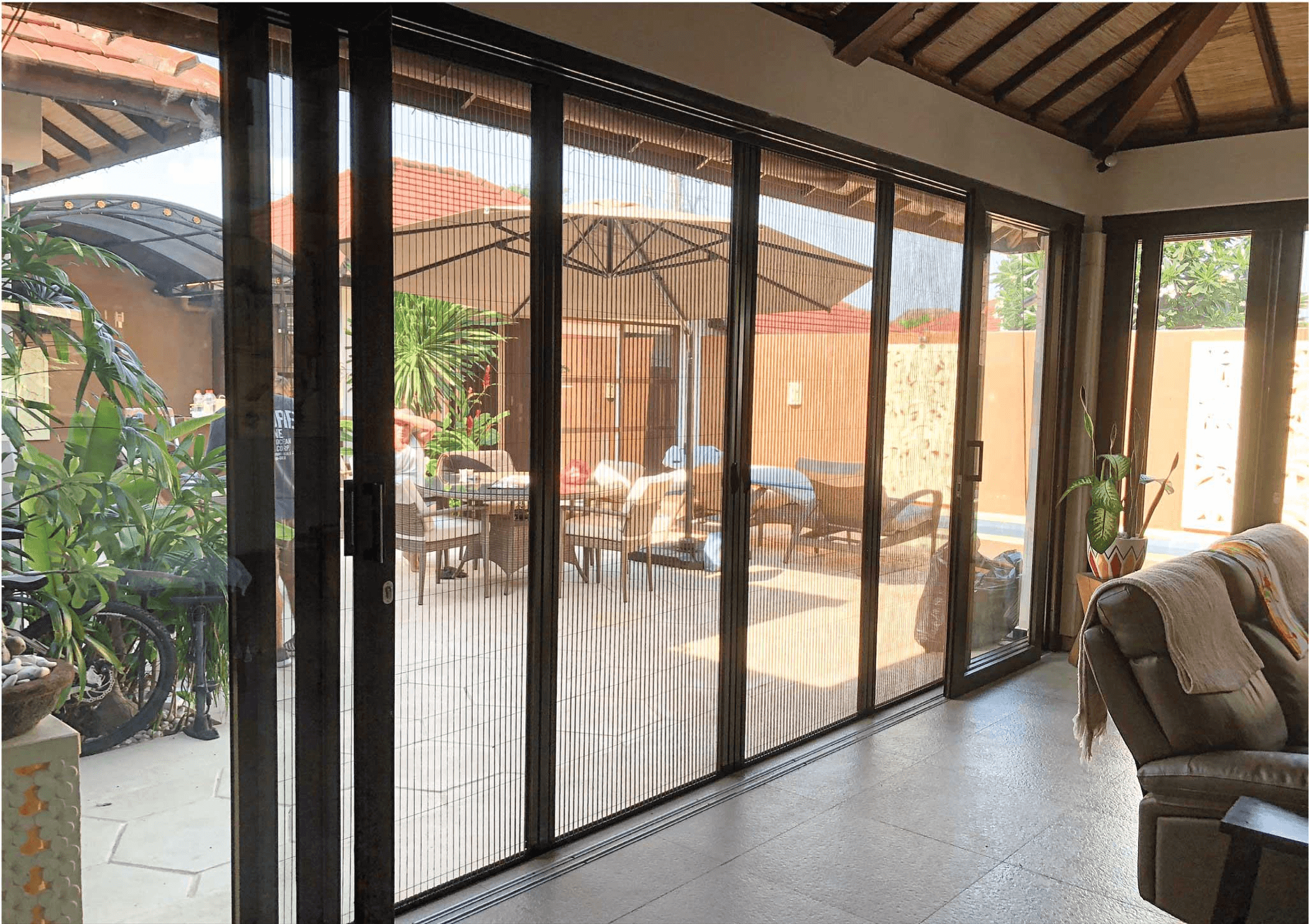

01. Barrier free door

Experience the ultimate blend of convenience and unrestricted access with our Barrier-Free Mesh Doors. Designed for seamless transitions, these doors provide a barrier-free entry, allowing you to enjoy the outdoors while keeping insects at bay.

Key Features:
German-Inspired Design Barrier-free design from Germany with user-friendly features for easy access.
Versatile Application Ideal for large balconies, verandas, French doors, and bifold doors.
Insect Defense Engineered for precision, the system forms a strong barrier to keep insects out without compromising air flow.
Detachable System The innovative detachable design enables easy mesh removal for hassle-free cleaning, maintenance, and storage.
View Product Information
Specifications of Operation
Single Door Maximum – 4 ft (W) × 10.5 ft (H)
Double Door Maximum – 8 ft (W) × 10.5 ft (H)
Caterpillar Door Any Width is Possible*
Minimum Size 25 cm × 50 cm
Special Sizes Up to 12 ft height available in High Clear Mesh (P.E.T)
Mesh Specifications
Aluminium Track 1.1±0.2mm Thicknes
Material Polyester
Weave Type Warp Knittin
Pleat Size 20 mm
Mesh Weight 85 g/m2
Available Colors Grey / Black

02. Pleated Mesh Elite

Elevate your living space with our cutting-edge Pleated Elite System, a patented design imported from Germany. This detachable marvel is engineered to withstand high wind pressure, ensuring durability and performance that surpasses industry standards.

Key Features
Maximized Visibility & Ventilation: Enjoy unobstructed views and a continuous flow of fresh air through wider opening options.
Collapsible Mesh Sleek pleated design folds away seamlessly, ensuring minimal visual intrusion and a cleaner aesthetic.
Insect Defense Engineered for precision, the system forms a strong barrier to keep insects out without compromising air flow.
Detachable System The innovative detachable design enables easy mesh removal for hassle-free cleaning, maintenance, and storage.
View Product Information
Specifications of Operation
Single Door Maximum – 5 ft (W) × 10.5 ft (H)
Double Door Maximum – 10 ft (W) × 10.5 ft (H)
Minimum Size 25 cm × 25 cm
Special Sizes Up to 12 ft height available in High Clear Mesh (P.E.T)
Mesh Specifications
Aluminium Track 1.1±0.2mm Thicknest
Material Polyesterj
Weave Type Warp Knitting
Pleat Size 20 mm
Mesh Weight 85 g/m2
Available Colors Grey / Black

03. Pleated Mesh Classic

Indulge in the timeless charm and practicality of our Pleated Classic system. Designed for ease of use and versatility, this system enhances your windows with a collapsible mesh, making it an ideal choice for various window types.

Key Features
Maximized Visibility & Ventilation Enjoy unobstructed views and a continuous flow of fresh air through wider opening options.
Collapsible Mesh Sleek pleated design folds away seamlessly, ensuring minimal visual intrusion and a cleaner aesthetic.
Insect Defense Engineered for precision, the system forms a strong barrier to keep insects out without compromising air flow.
Weather-Resistant Material Crafted from 100% polyester, the mesh is rain and sun-heat resistant, ensuring durability in various weather conditions.
View Product Information
Specifications of Operation
Single Door Maximum – 5 ft (W) × 10.5 ft (H)
Double Door Maximum – 10 ft (W) × 10.5 ft (H)
Minimum Size 25 cm × 25 cm
Special Sizes Up to 12 ft height available in High Clear Mesh (P.E.T)
Specifications
Aluminium Track 1.1±0.2mm Thickness
Material Polyester
Weave Type Warp Knitting
Pleat Size 16 mm
Mesh Weight 85 g/m2
Available Colors Grey / Black
