- Designed for large,tall openings with maximum strength & stability
- Handles heavier sash weight and ensures premium sliding smoothness
- Superior performance in wind, air and water sealing for bigger and taller windows
- Ideal for Architectural requirements
Sash Details
Max Height (mm)
3600
Max Width (mm)
1500
Weight (kg)
200
Interlock Visibilty
Non Slim (mm)
92
Slim (mm)
25
Track Options & Depth

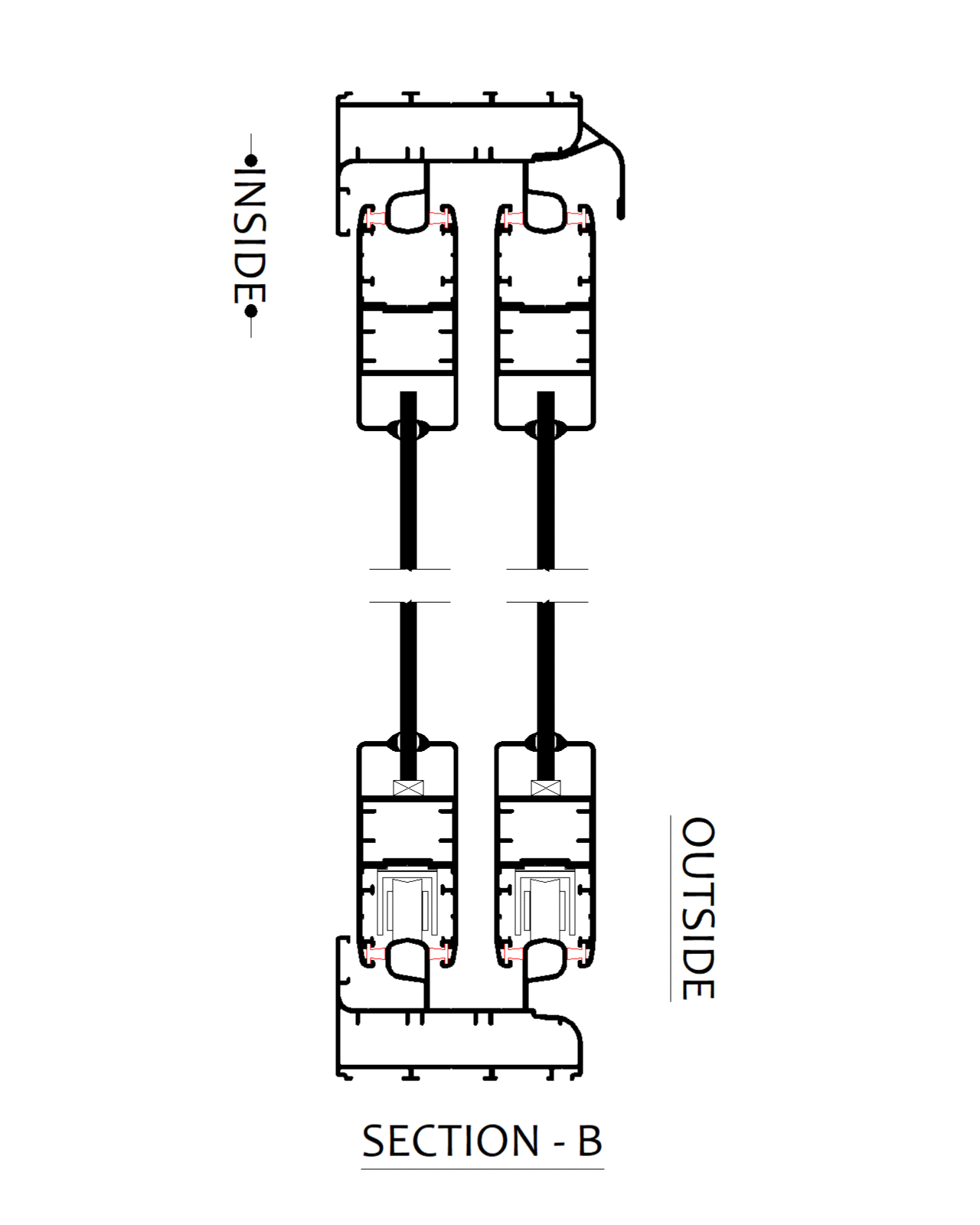

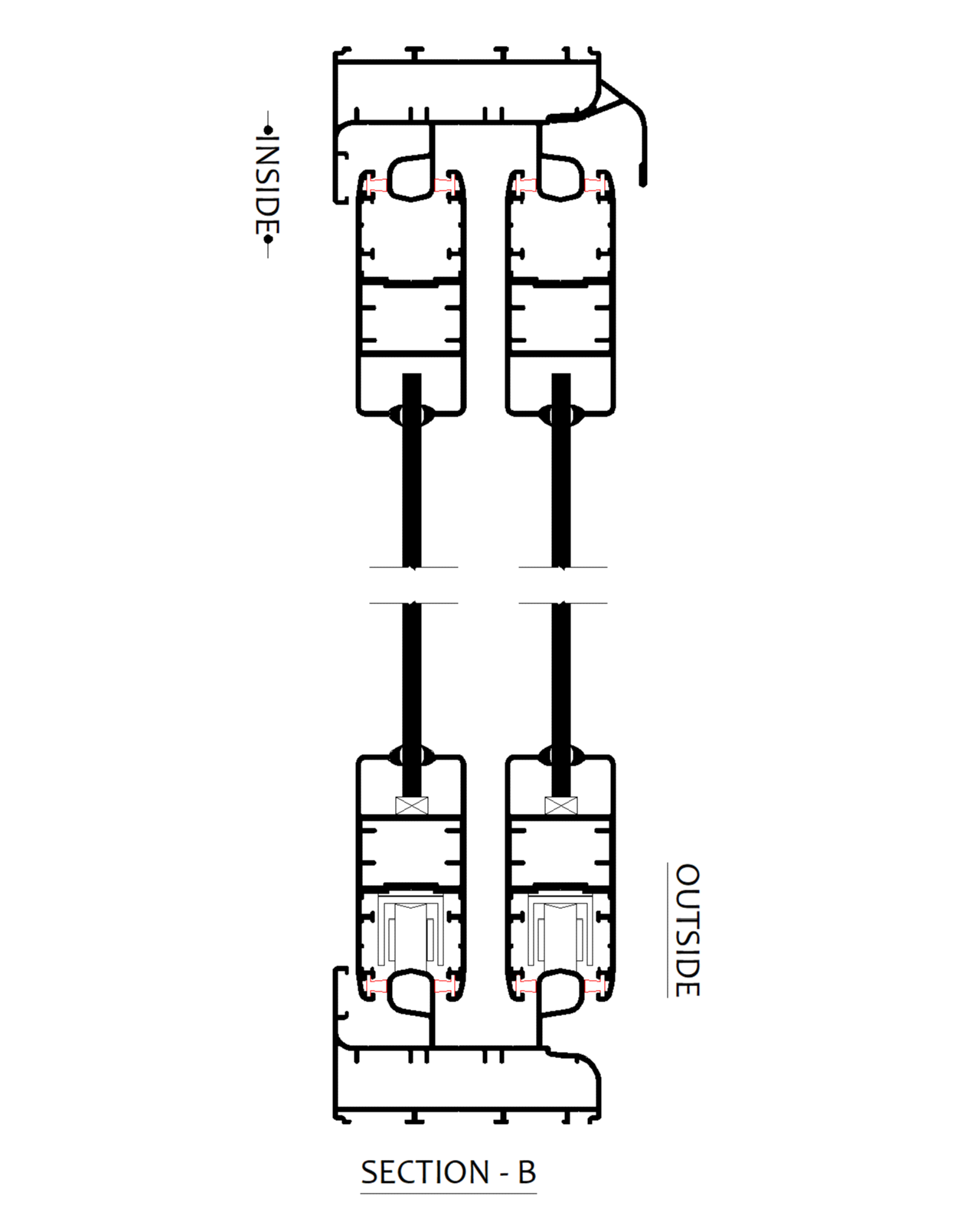

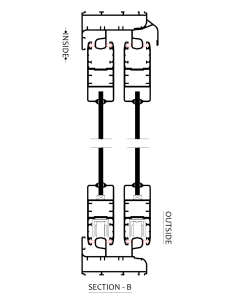

2 track (mm)
90

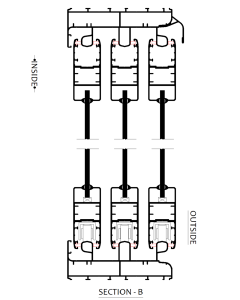

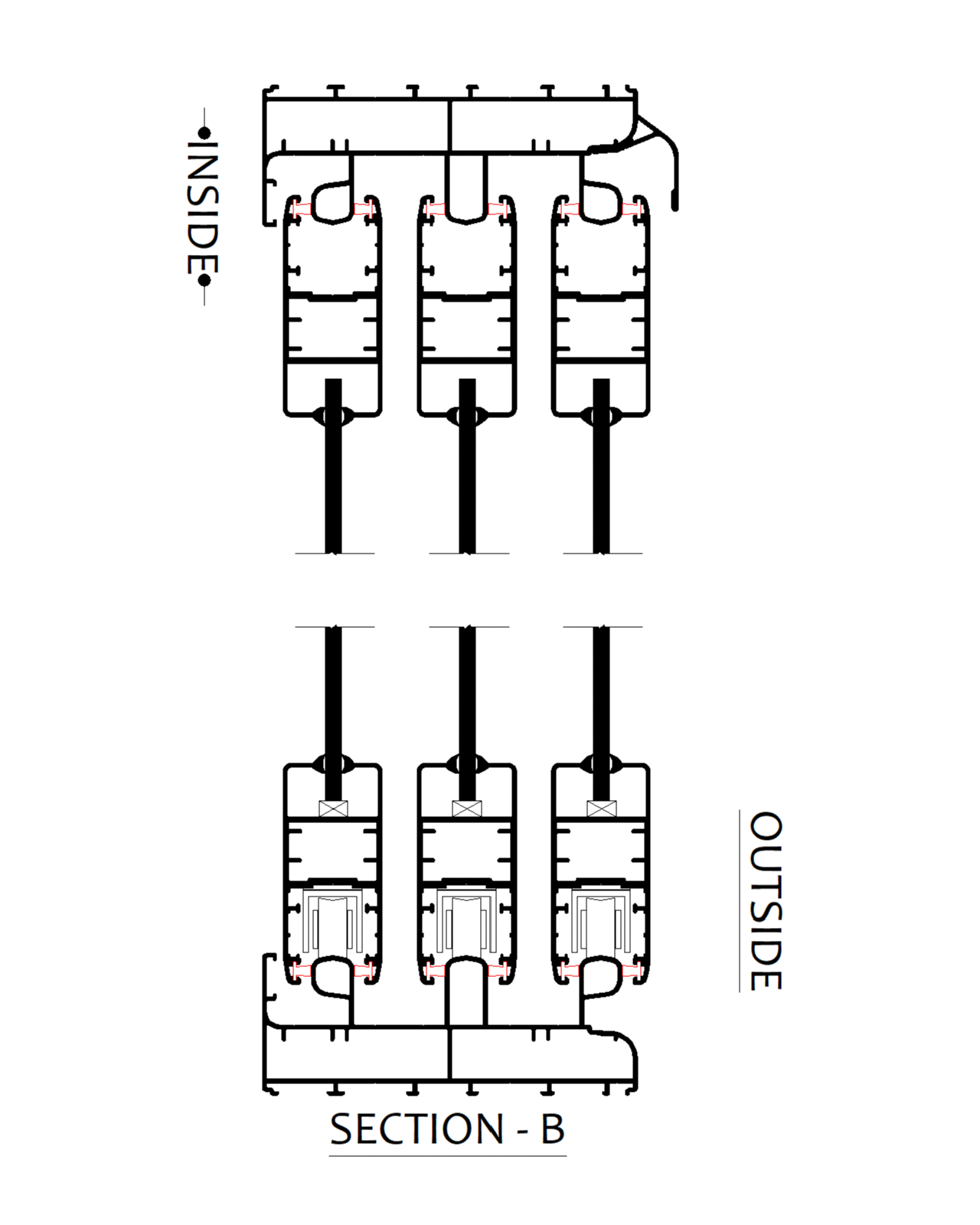

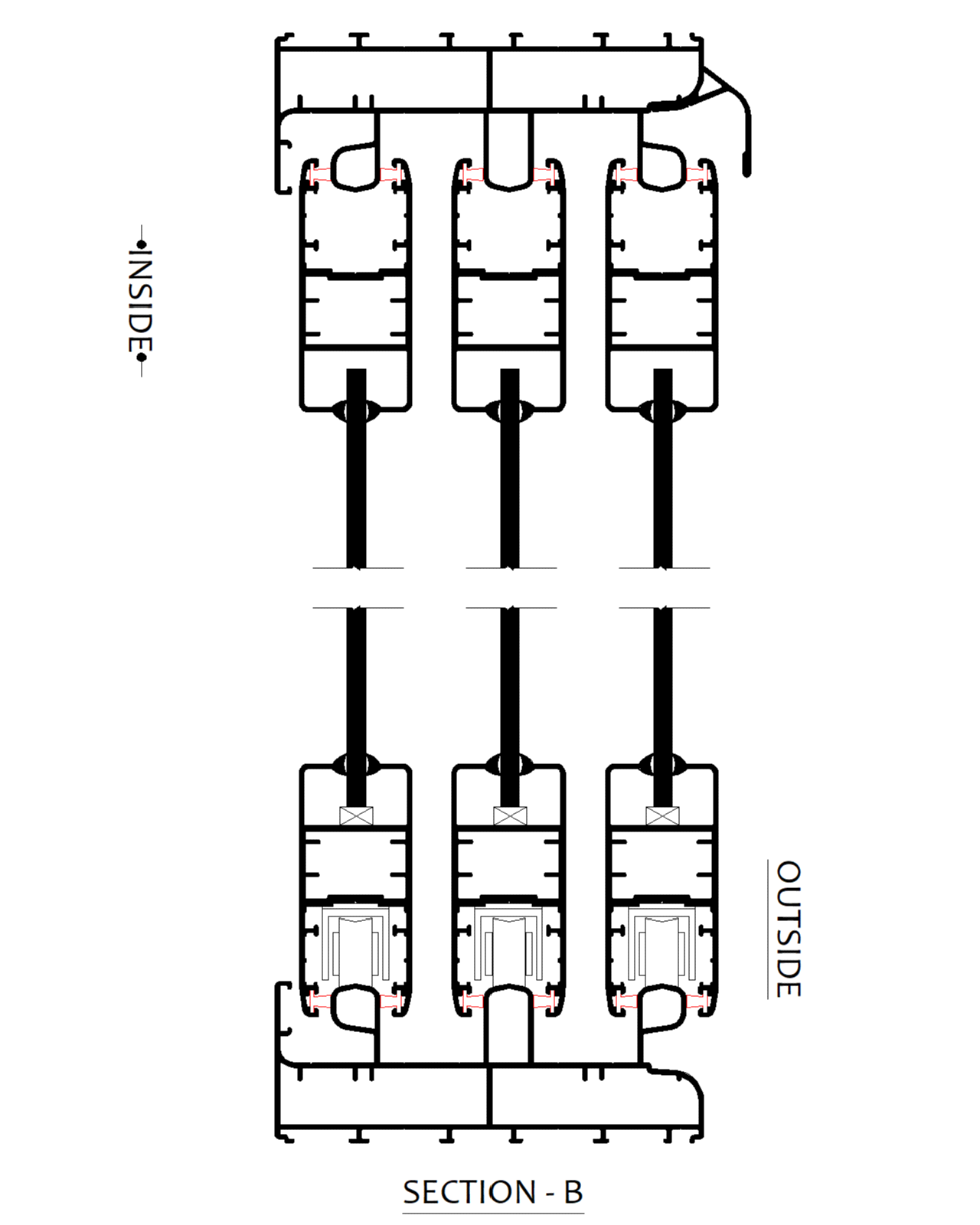

3 track (mm)
140
Handle
Concealed
Yes
Mortise
Yes
Corner Joint
Sash
45 deg / 90 deg for sleek interlock
Track
45 deg
Glass Range
SGU
5 to 10 mm
DGU
upto 24 mm
Locking Type
Single
Yes
Multipoint
Upto 4 Points
Others
Wind Load
3 Kpa
Air tightness
400 Pa
Water tightness
400 Pa
Colour options
All RAL Shades
Mesh Options
Yes
