Glass Partition System

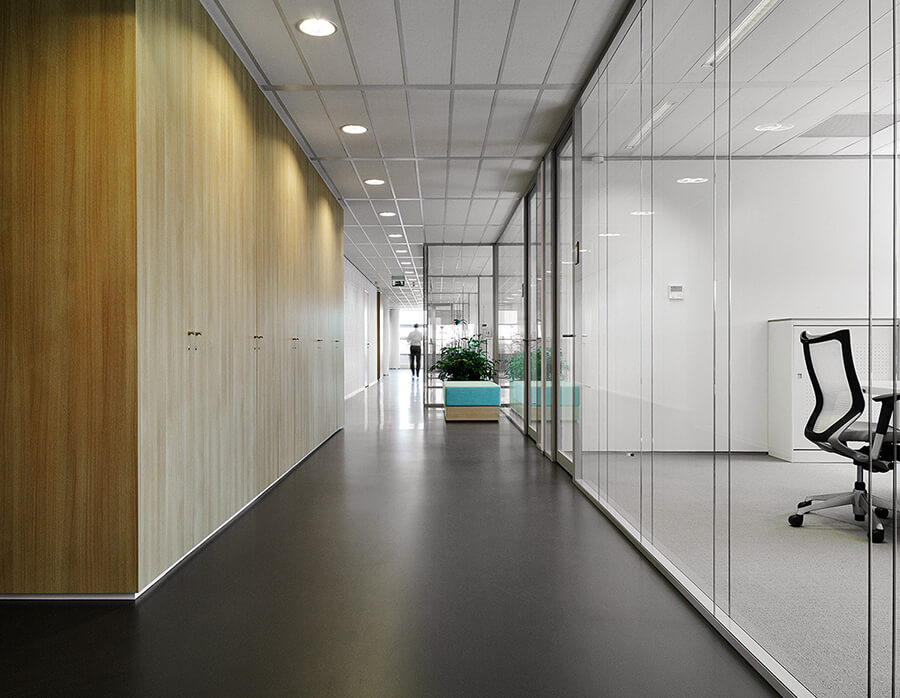

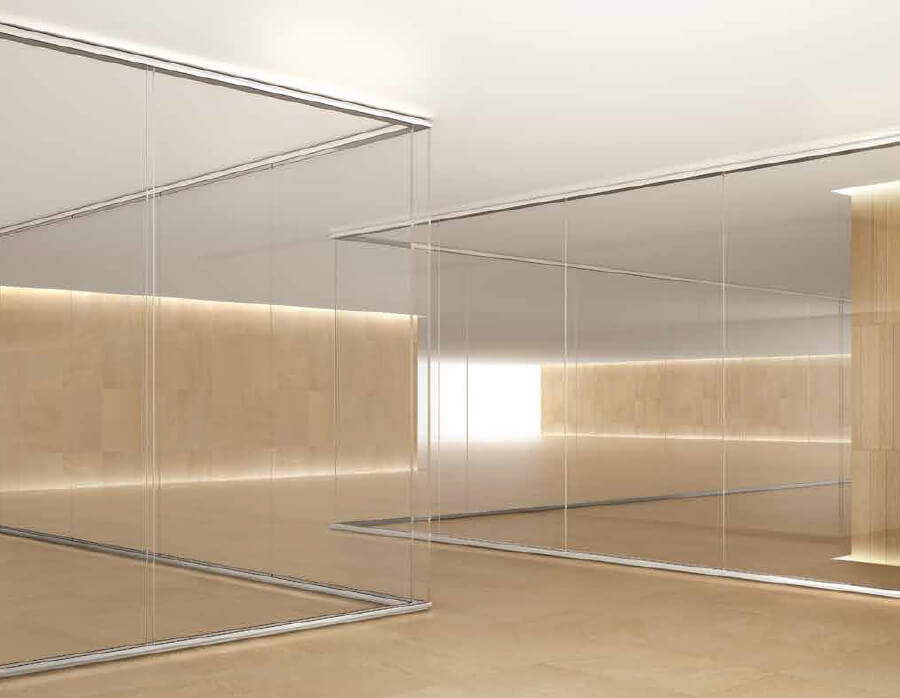

Light Wall is a system of interior demountable partition walls in which the panels, in glass and wood, are self-bearing. LW1 and LWA versions are single-glazed, central and asymmetric, LW2 version is double-glazed, LWC is composed of two solid panels. The partitions, 75 mm thick, are made of extruded aluminium profiles designed to house safety glass panels, special glazed panels with wood or fabric, solid panels in melamine, veneer coated or lacquered.
Top and bottom tracks allow the perfect leveling of the partition wall and can house 10/11 mm or 12/13 mm laminated glasses. The fixing of the glasses is guaranteed by plastic gaskets, connections between elements, linear or with variable angle, are provided by profiles in aluminium, transparent polycarbonate or in crystal clear double-sided tape. Doors are available in hinged or inner sliding type, with single or double leaf, in glass or solid, and can be provided in full-height version too.
DRAWING & DETAILED
