Solid Partition System

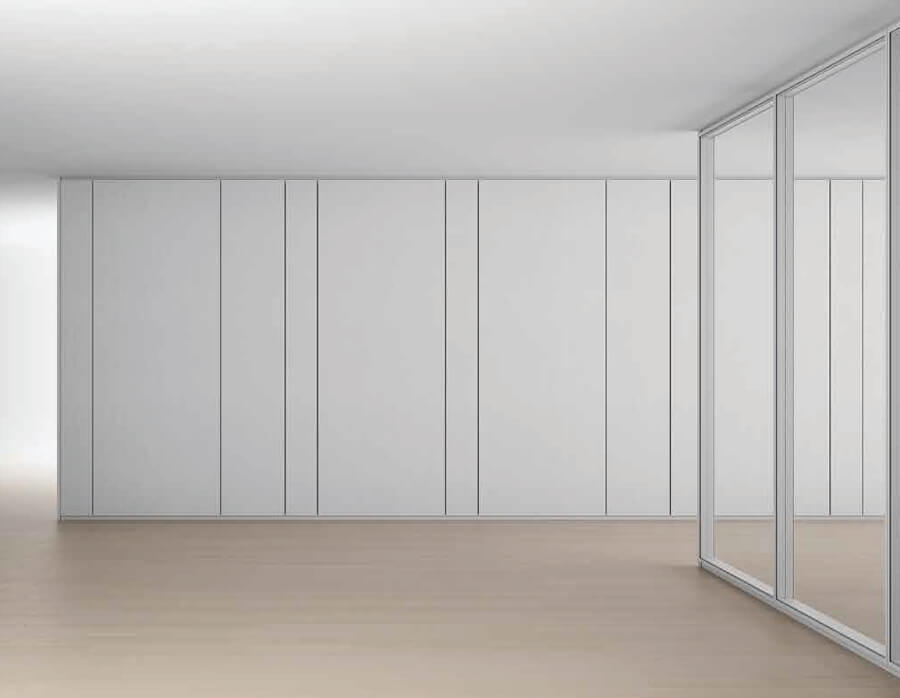

Solid Wall is a traditional partition wall unit, 100 mm thick, to be fitted with accessories and proposed in 3 versions: wooden solid, single glass and double glass. It is composed of an inner supporting structure in zinc-coated vertical and horizontal profiles and it is fitted with infill modules, 50/100/150/200 cm wide, that are fixed by a snap system by harmonic steel springs that are pre-inserted in free positions into the perimetric cutting of the panels.

The posts are equipped with adjustable feet both floor and ceiling. Connection points between the structure and the infill panels are covered by a gap seal. Floor and ceiling profiles, corners, starting, ending and glass-stopper profiles are made of extruded aluminium and are equipped with plastic seal gaskets. Doors are available in the hinged version with solid or glass leaf or in the external sliding version, with single or double leaf, and they can be provided both in standard and full-height.

DRAWING & DETAILED

The modular system of the partition wall allows traditional installations, strictly aligned and symmetrical, or innovative proposals with variable pitch elements, different in size, shape or material.

Wall abutment for an optimal connection, to compensate the out of plumb masonry.

Monolithic 90° corner, for stable and precise alignments.

Variable angles with composed profiles for the adjustment of the inclinations.

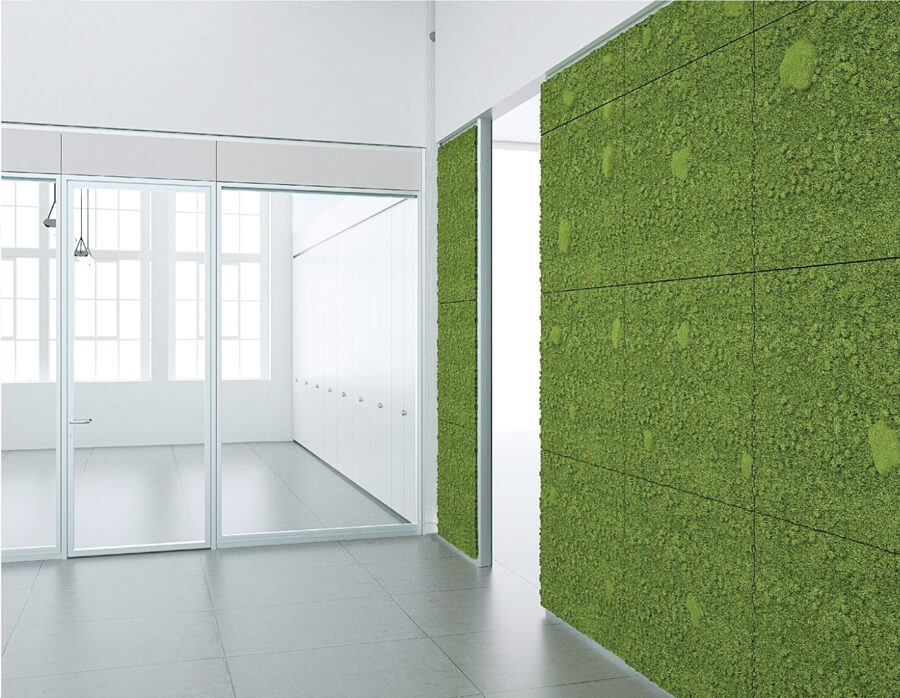

Alternation of modules, solid and glazed, according to traditional or innovative sequences, to achieve the required distribution of empty and full effects.

Aluminium bottom track, a resistant and easy-to-clean base, a finishing floor and ceiling profile with aesthetic and structural function.
