- Offers higher height & width capability for larger window spans
- Better wind, air & Water performances for enhanced comfort
- Compatible with thicker glass for improved insulation and sound control
- A balanced choice between performance, durabilty & aesthetics.
Sash Details
Max Height (mm)
2400
Max Width (mm)
1200
Weight (kg)
120
Interlock Visibilty
Non Slim (mm)
65
Slim in mm
25
Track Options & Depth

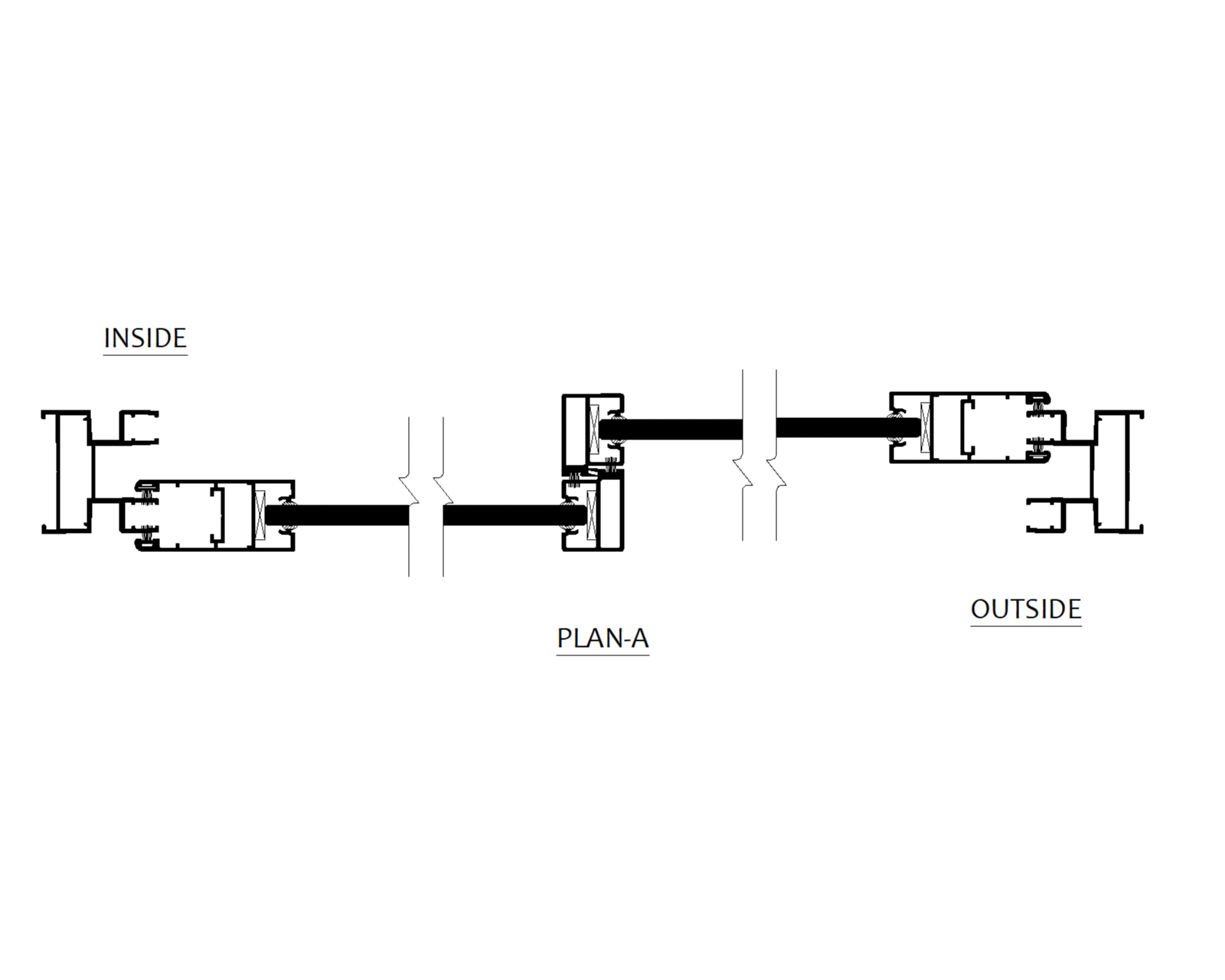

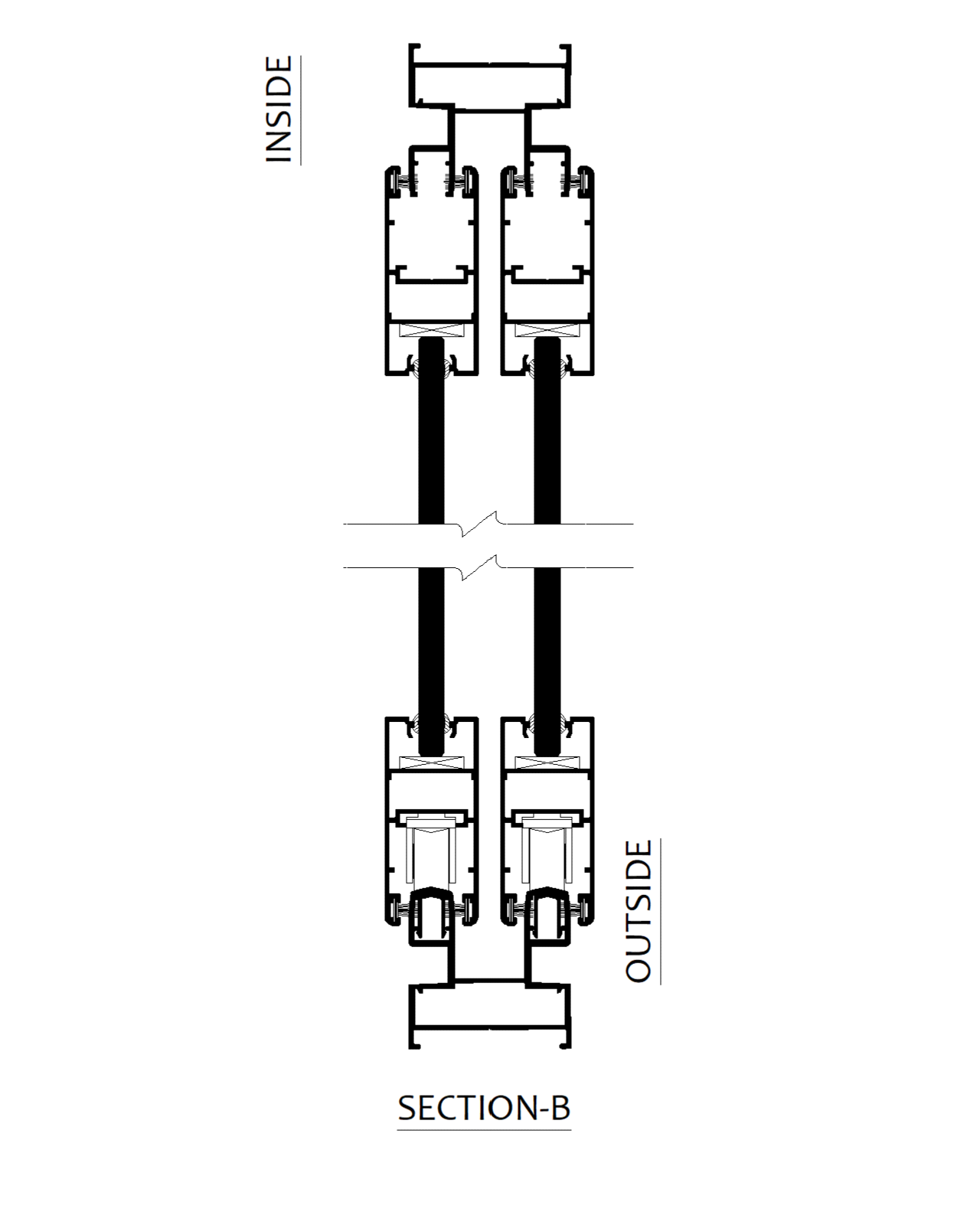

2 track (mm)
65

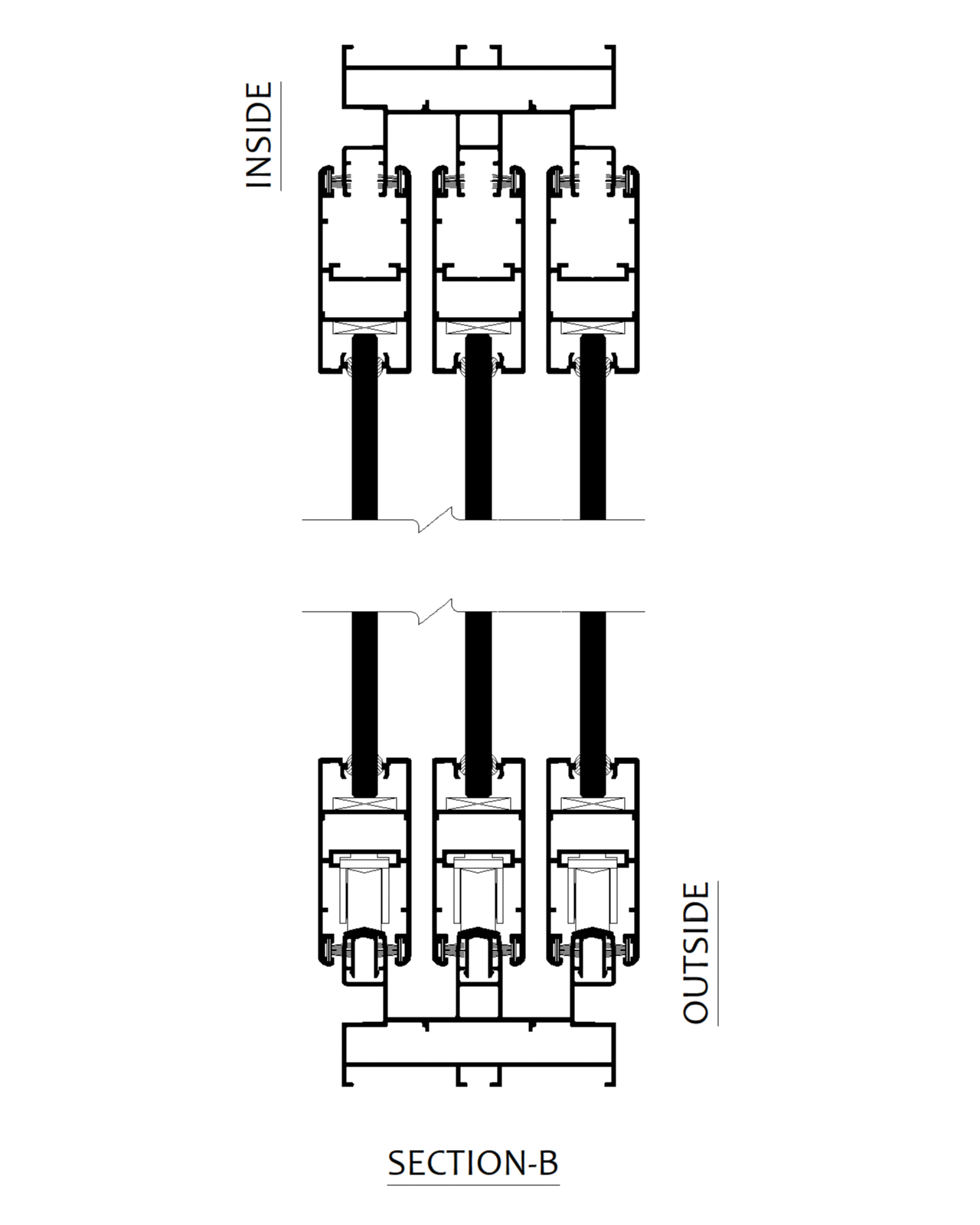

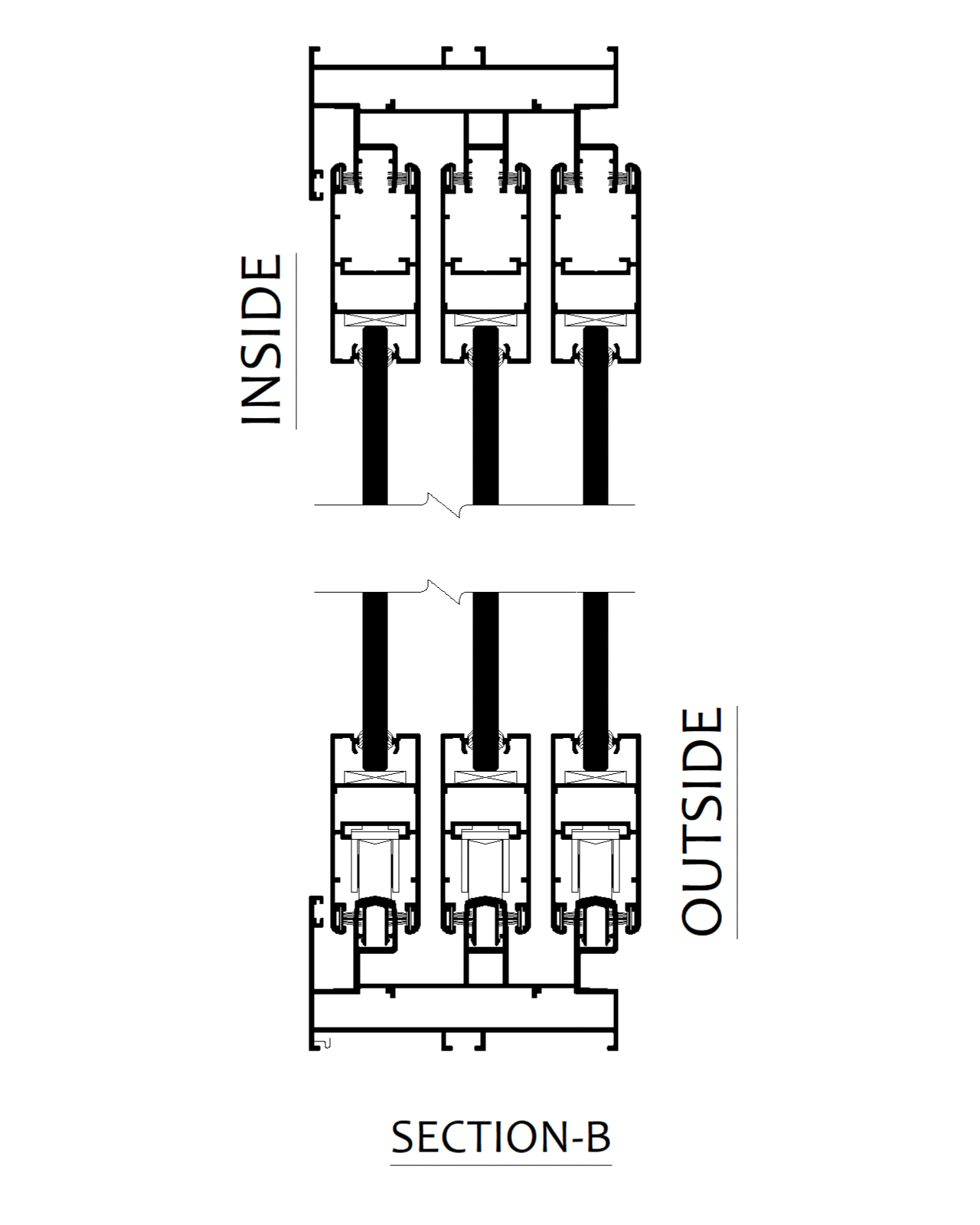

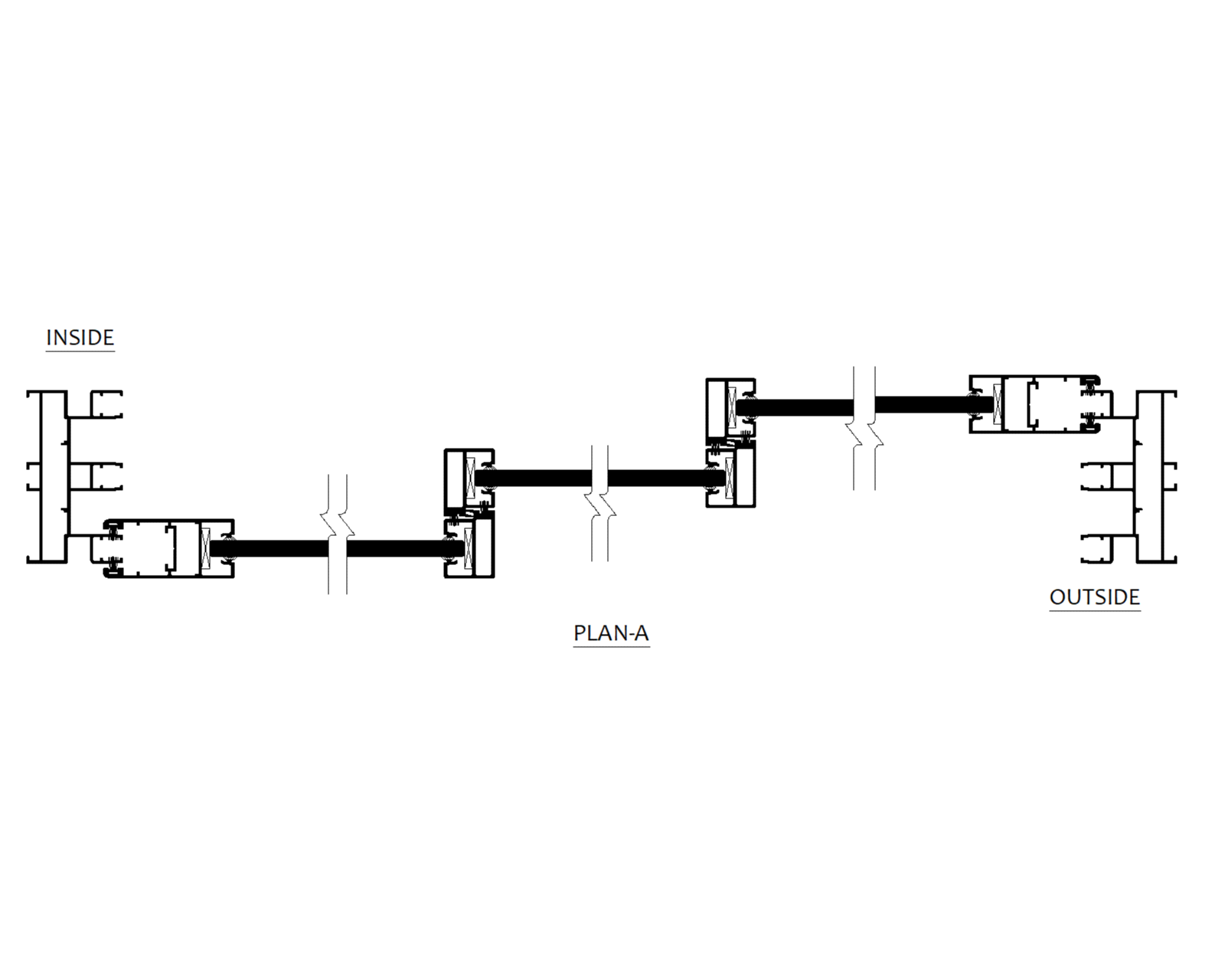

3 track (mm)
101
Handle
Concealed
Yes
Mortise
Yes
Corner Joint
Sash
45 deg / 90 deg for sleek interlock
Track
45 deg
Glass Range
SGU
5 to 8 mm
DGU
upto 20 mm
Locking Type
Single
Yes
Multipoint
upto 4 Points
Others
Wind Load
upto 2.5 Kpa
Air tightness
300 Pa
Water tightness
300 Pa
Colour options
All RAL Shades
Mesh Options
Yes
